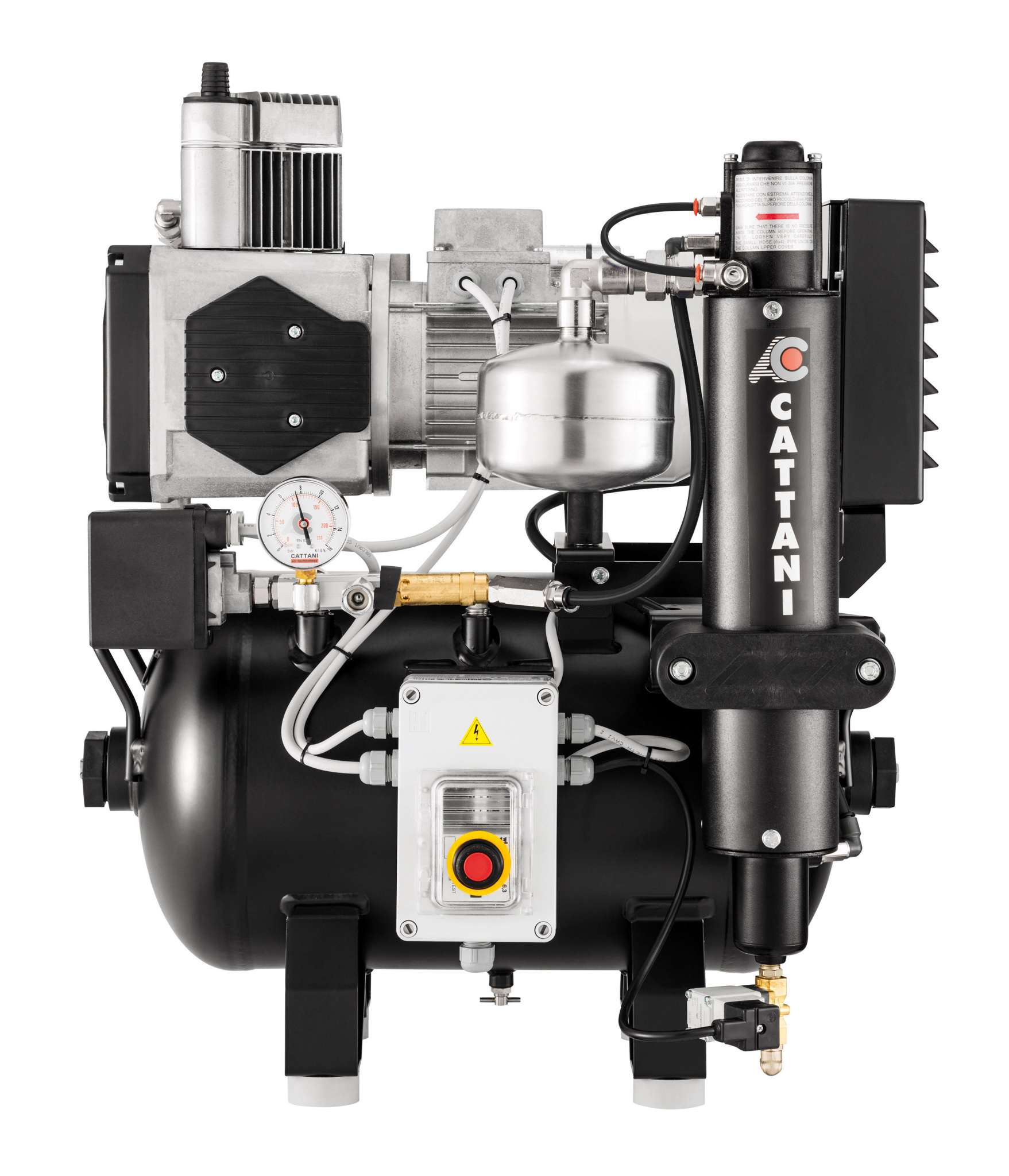

Cattani AC100 Compressor

For a single surgery, the AC100 Cattani Single Cylinder Compressor, can be supplied with or without dryer, and noise reduction options. This machine is oil-free and has a desiccant drying system to ensure the efficient delivery of clean, dry air. It is supplied with a high quality SMC pressure regulator.

For maximum efficiency, reliability and longevity, the compressor’s plant area should have an operating range of between +5 – 35°C.

Compressor filters provide superior air purification, however these can be further upgraded to HEPA H14 filters providing an even higher level of filtration.

Cattani Compressors are hand built and quality checked at every stage of production and fully conform to ISO standard 22052.

Cattani Compressors are built with a self-purging drying column, requiring minimum maintenance.

All Cattani Compressors are supplied with a 5 year warranty*

An additional 2 year warranty* can be purchased at the point of sale, increasing the warranty from 5 to 7 years.

*Warranty is subject to T&Cs of servicing schedule, additional 2 year warranty must be purchased with the unit at point of sale.

Technical Specifications:

Product Code: H13130
No. of Surgeries: 1 surgery
No. of Cylinders: Single cylinder
No. of Dryers: 1 dryer
Output power: 1~ 50Hz 0.55kW – 3.8A
Produced air: 67.5N l/min (pressure at 5 real bar)
Air Tank Volume: 30 Litres
Noise level: 70dB(A)
Dimensions: W620 D460 H720 (mm)
Net Weight: 47Kg
Gross Weight: 61Kg

This compressor can also be purchased with a sound reducing cover (AC100Q) for further information about this product and any available accessories please contact us.
