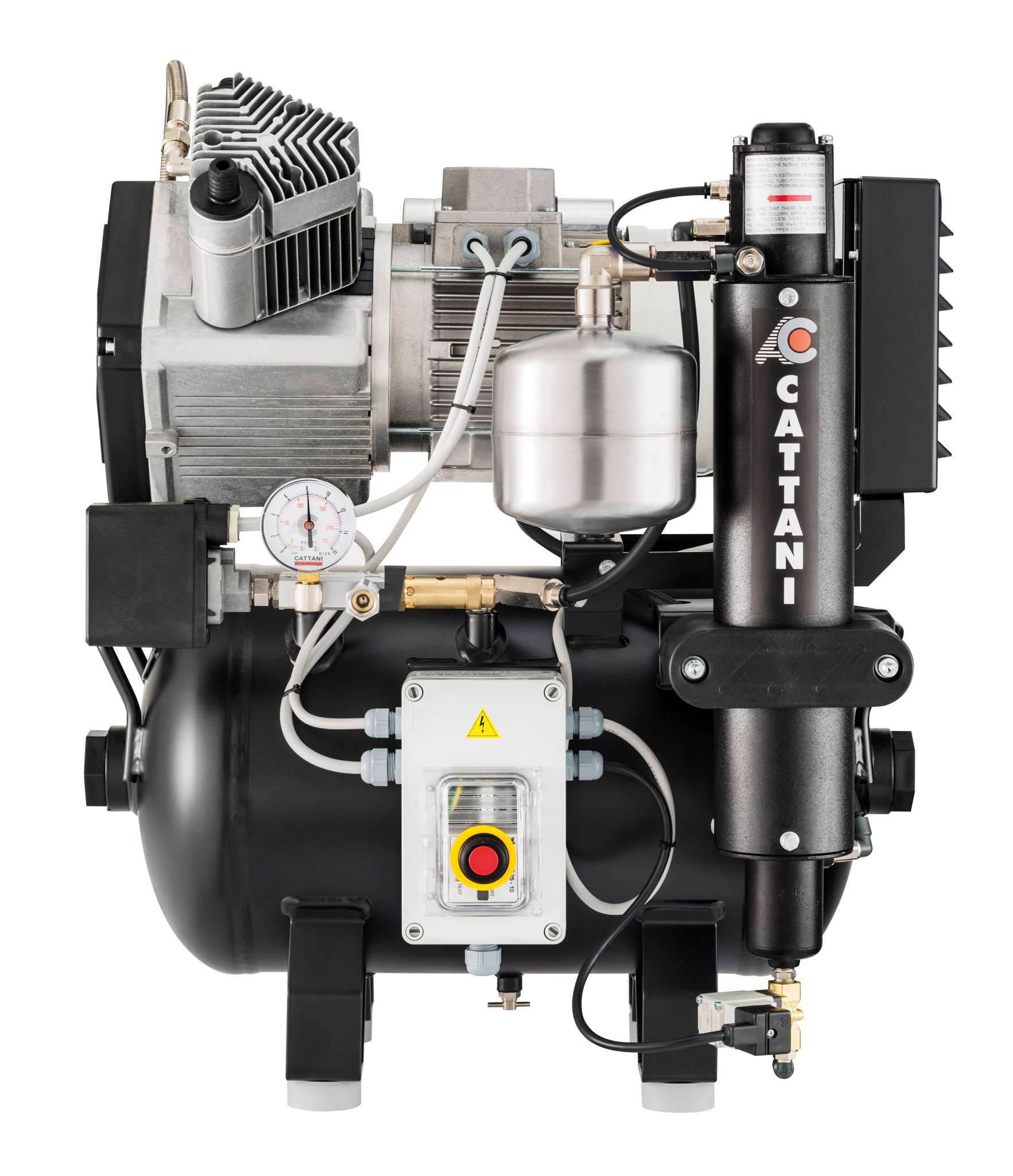

Cattani AC200 Compressor

The AC200 compressor is designed for up to 4 surgeries, 3 running simultaneously.

Compressor filters provide superior air purification, however these can be further upgraded to HEPA H14 filters providing an even higher level of filtration.

Cattani Compressors are hand built and quality checked at every stage of production and fully conform to ISO standard 22052.

Cattani Compressors are built with a self-purging drying column, requiring minimum maintenance.

For maximum efficiency, reliability and longevity, the compressor’s plant area should have an operating range of between +5 – 35°C.

All Cattani Compressors are supplied with a 5 year warranty*

*Warranty is subject to T&Cs of servicing schedule, additional 2 year warranty must be purchased with the unit at point of sale.

Technical Specifications:

Product Code: H13230
No. of Surgeries: 2-4 surgery
No. of Cylinders: 2 cylinder
No. of Dryers: 1 dryer
Output power: 1~ 50Hz 1.2kW – 7.7A
Produced air: 160N l/min (pressure at 5 real bar)
Air Tank Volume: 30 Litres
Noise level: 71dB(A)
Dimensions: W620 D460 H720 (mm)
Net Weight: 54Kg
Gross Weight: 68Kg

This compressor can also be purchased with a sound reducing cover (AC200Q) for further information about this product and any available accessories please contact us.
