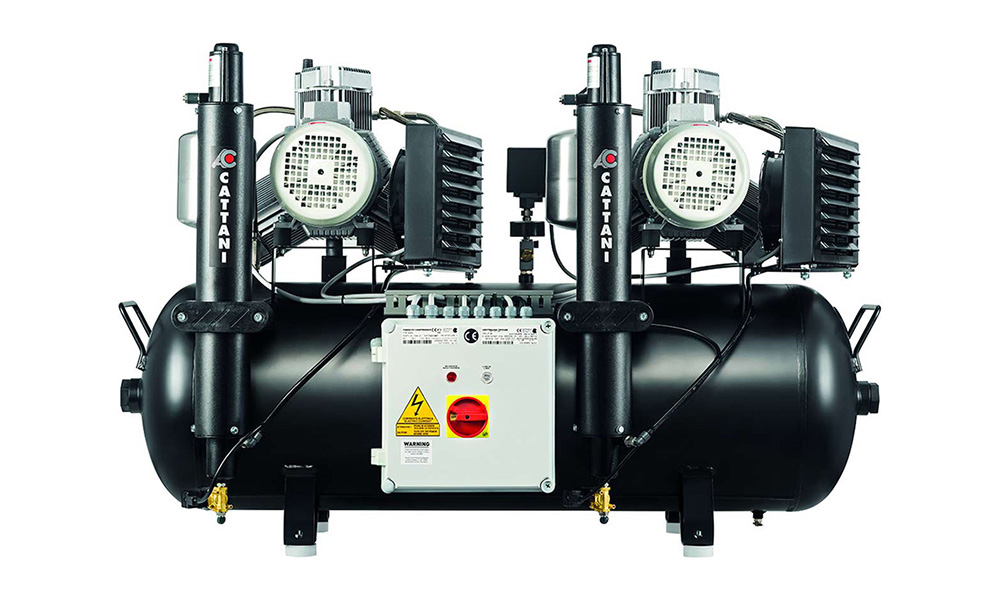

Cattani AC400 Compressor

The AC400 compressor is designed for up to 8 surgeries, 6 running simultaneously.

All Cattani Compressors can be supplied with a high quality pressure regulator.

Cattani compressors when correctly specified will deliver the minimum requirements of 50 Litres / minute per chair (at 5 bar pressure) when running simultaneously.

For maximum efficiency, reliability and longevity, the compressor’s plant area should have an operating range of between +5 – 35°C.

All Cattani Compressors are supplied with a 5 year warranty*

An additional 2 year warranty* can be purchased at the point of sale, increasing the warranty from 5 to 7 years. *Warranty is subject to T&Cs of servicing schedule, additional 2 year warranty must be purchased with the unit at point of sale.

Technical Specifications:

Product Code : H13430 1~ / H13435 3~
No. of Surgeries : 6-8 surgery
No. of Cylinders : 2 cylinder tandem motor
No. of Dryers : 2 dryers
Output power : 1~ 50Hz Total 2.4kW – 15.4A or 3~ 50Hz Total 3kW – 7.2A
Produced air : 320N l/min (pressure at 5 real bar)
Air Tank Volume : 100 Litres
Noise level : 73dB(A)
Dimensions : W1155 D550 H745 (mm)
Net Weight : 112Kg
Gross Weight : 139Kg

Browse our Resource Centre to find relevant guides and brochures for all of our products.

This compressor can also be purchased with a sound reducing cover (AC400Q) for further information about this product and any available accessories please contact us.
