Cefla MyRay RXDC eXTend

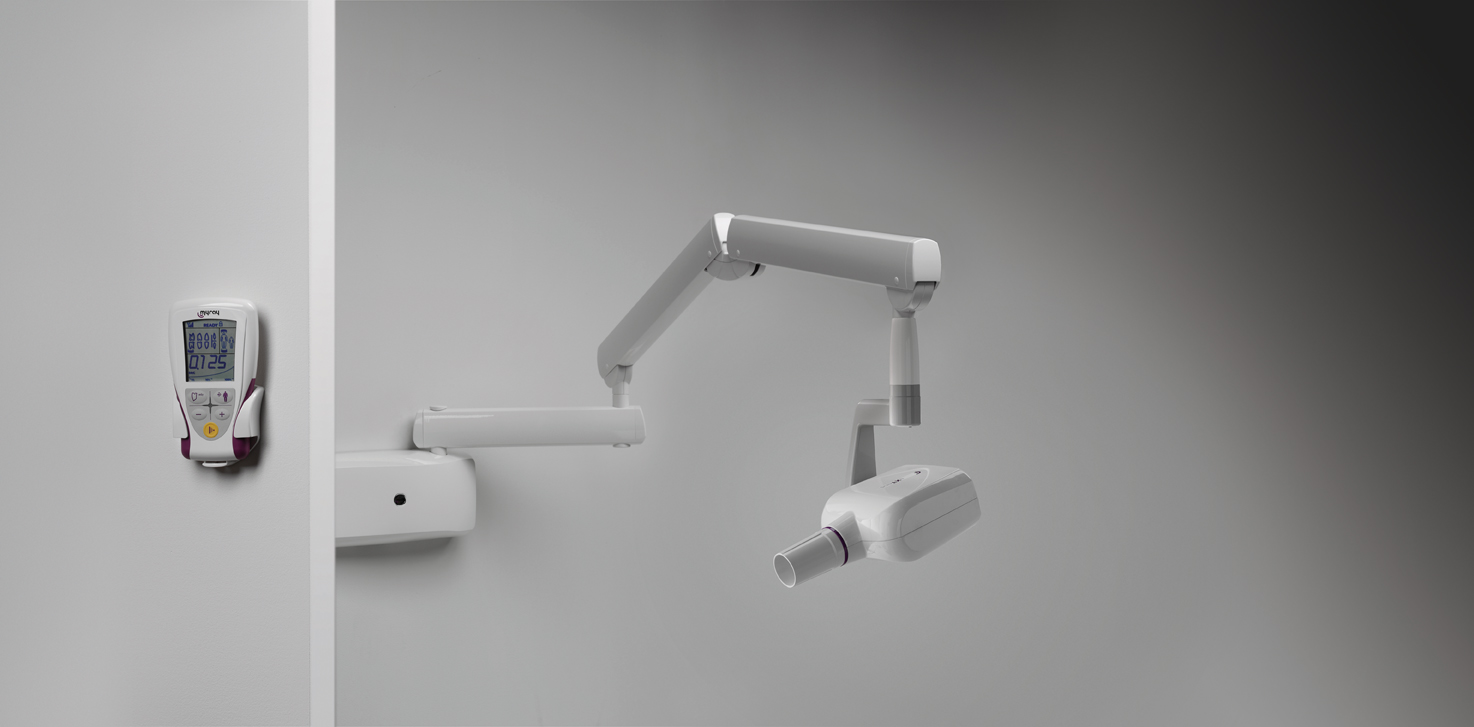

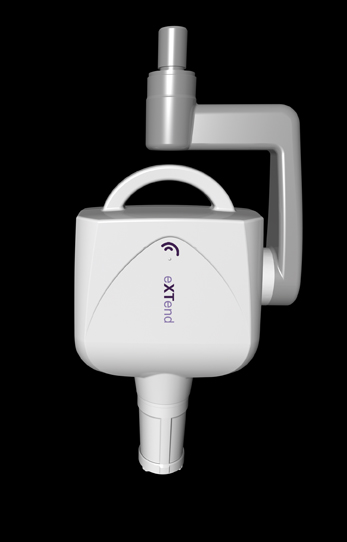

The MyRay RXDC eXTend Wireless intraoral imaging system offers everything you need to obtain accurate and sharp images.  The portable hand-held imaging device offers a wide selection of easily accessible and programmable exposure scenarios.  As it’s fully wireless there are no other wall-mounted or wired control panels to worry about. No more complex programming or button-crowded panels. This portable device offers a full range of easy-to-understand exposure scenarios. Simply by selecting the region of interest, both RXDC Hypersphere+ and RXDC eXTend automatically define the correct exposure.
With a source-to-skin distance of 30 cm, achieved thanks to an embedded collimator, RXDC eXTend generates far sharper images than standard X-ray units which typically feature a parallelism significantly limited by shorter collimation.

Features:

• Handheld wireless device
• Compact & lightweight
• Multiple exposure
• Choice of 3 arm lengths available (40cm, 60cm, 90cm)
• Touch sensitive zones
• Comfortable grip
• Quality build
• Operating frequency: 145 – 230 KHz
• Focal spot: 0.4mm
• Anode current: 6, 7 mA
• Voltage: 60, 63, 65 kV
• Exposure time: 0.010 – 1.000 sec, R10 and R20 scale
• Source-skin distance: 30 and 20cm round, 30cm rectangular
