NSK iClave Plus B Type Vacuum Autoclave – 18 Litre

The iClave Plus B-Type Vacuum Autoclave from NSK features a copper chamber to improve efficiency and capacity and achieves advanced levels of safety and durability through a wide range of user friendly functions.

Air turbines, contra-angles, and other dynamic dental instruments consist of high-precision micro mechanisms and therefore benefit from careful sterilization to maintain performance. NSK chose to use a highly conductive copper chamber to satisfy Class B, Europe’s strictest sterilisation standard.

The iClave plus can fully use its 18 litre capacity because it maintains even temperatures throughout the autoclave chamber and constantly controls the surface temperature.

The iClave Plus system delivers outstanding efficiency despite its large capacity.

Advantages

• More capacity
• Faster sterilization
• More efficient drying phase
• More economical and environmentally friendly
• Gentle handpieces sterilisation

Copper Chamber

High efficiency copper chamber improves total cycle times for faster throughput, saving time and money. Using copper to construct the chamber gives 17.7 times more heat conductivity than stainless steel. The copper chamber retains even internal temperature levels throughout, enhancing the drying performance, helping protect instruments from corrosion, discolouration and damage.

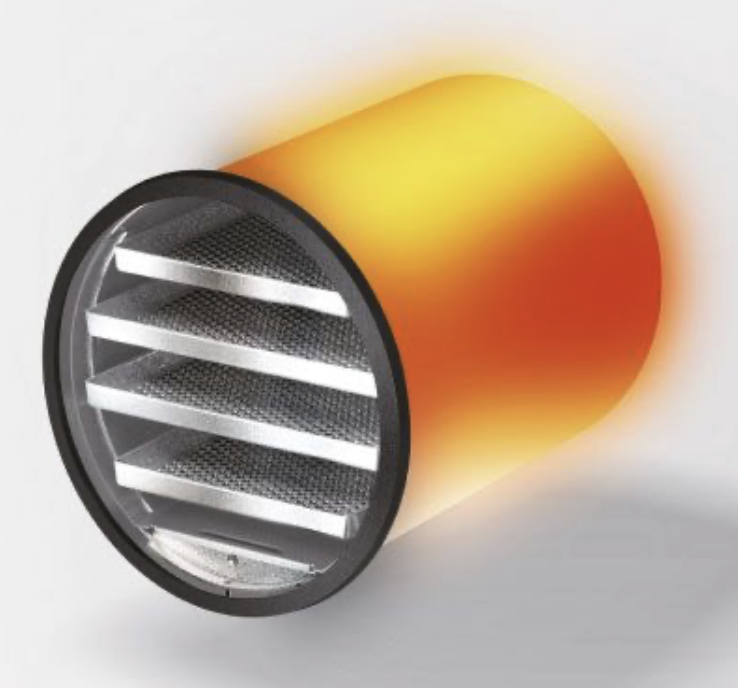

Adaptive Heat System

Advanced heating system leveraging excellent thermal conductivity – NSK’s innovative heating system optimizes the high heat conductivity of copper. Enveloping the copper chamber is a special heater which is also used in satellites, incorporating electro-thermal material embedded in silicone to heat the entire chamber evenly without heat loss.

Advanced Safety and Durability Through User-Friendly Functions

• Vacuum sterilization for all types of instrument – A vacuum pump removes air from the chamber and handpiece cavities before sterilization.

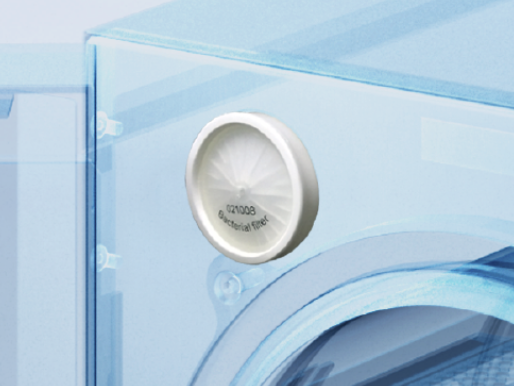

• Bacterial ventilates for greater safety – The iClave plus ventilate air through a bacterial filter during the drying phase, eliminating the possibility of re-contamination.
• Designed to boost product reliability – Consistent temperatures inside the chamber eliminate fluctuation stresses and reduce the risk of problems. NSK initially reviewed product reliability to ensure safe treatment. There are three temperature sensors to control temperatures in the iClave plus. An annual maintenance service alert helps prevent breakdowns and boosts product reliability.
• Stainless steel body enhances durability – The stainless steel body work, which is rare for an autoclave these days, makes iClave plus more robust. Together with the copper chamber it delivers outstanding durability.

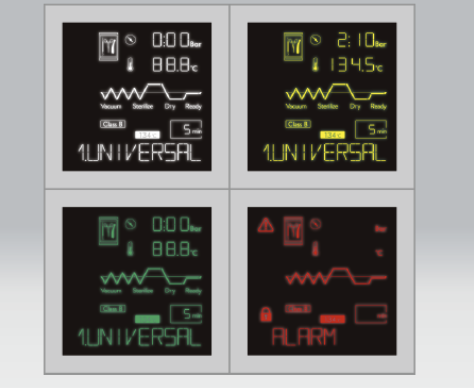

• User-friendly, easy to read operating panel – With a sophisticated design and excellent visibility, the panel is easy to operate and maintain, with colours changing according to conditions, enhancing sterilization reliability.
• Constantly monitoring working parameters for safe operation – The process evaluation system constantly monitors pressure, temperature, water quality and steam. Additional features include cycle counter, altitude set-up, maintenance monitoring, triple safety lock, auto switch-off, and double water tank.
• Sterilization cycle data recording – All sterilization cycles are recorded on a USB flash drive, and no special software is required to view and print records of all cycles. The system records all relevant cycle parameters against a unique date and time stamp.

Specifications

• External dimensions: W 445 x D 585 x H 440 mm
• Chamber dimensions: ø240 x 384 mm
• Chamber capacity: 18 litre
• Net weight: 47 kg
• Maximum power consumption: 1,920 W
• Supply Voltage: AC 230 V – 50/60 Hz
• Air expulsion system: Vacuum pump 2, 3, 4 vacuum
• Max load: 4 kg (solid), 1.5 kg (porous)

2 Year Manufacturers’ Warranty

For more information or to place an order please get in touch, we will be happy to assist you.
